Toughpower GF1 1000W - TT Premium Edition

Toughpower GF1 1000W - TT Premium Edition

stokta mevcut
P/N
PS-TPD-1000FNFAGx-1
179,99 €
80 PLUS Gold certified fully modular PSU with Hydraulic Bearing fan.

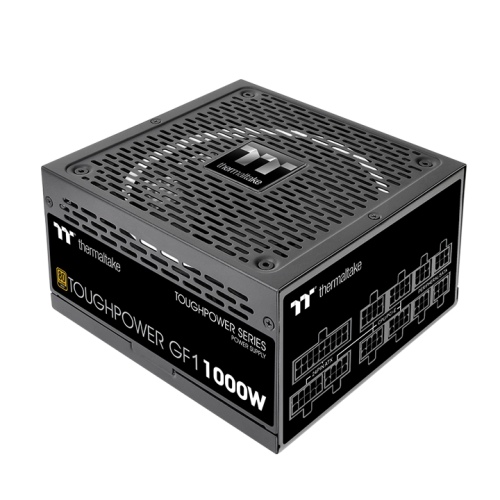

Toughpower GF1 1000W - TT Premium Edition

The fully modular Toughpower GF1 series now comes in 1000W and built to deliver 80 PLUS Gold efficiency. The series features a 140mm hydraulic bearing fan, Japanese capacitors and other premium components to help deliver a continuous and stable power with an ambient temperature up to 50°C, while near silent operation and reliable performance are guaranteed. With an ample 10-year warranty, the Toughpower GF1 1000W Gold is able to satisfy the market where PC enthusiasts are looking for a premium power supply with all the latest features.

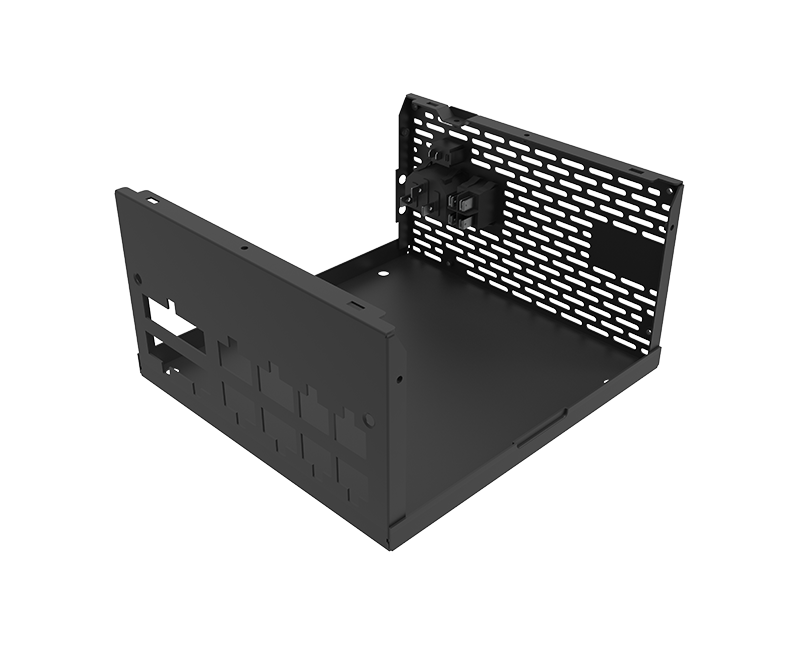

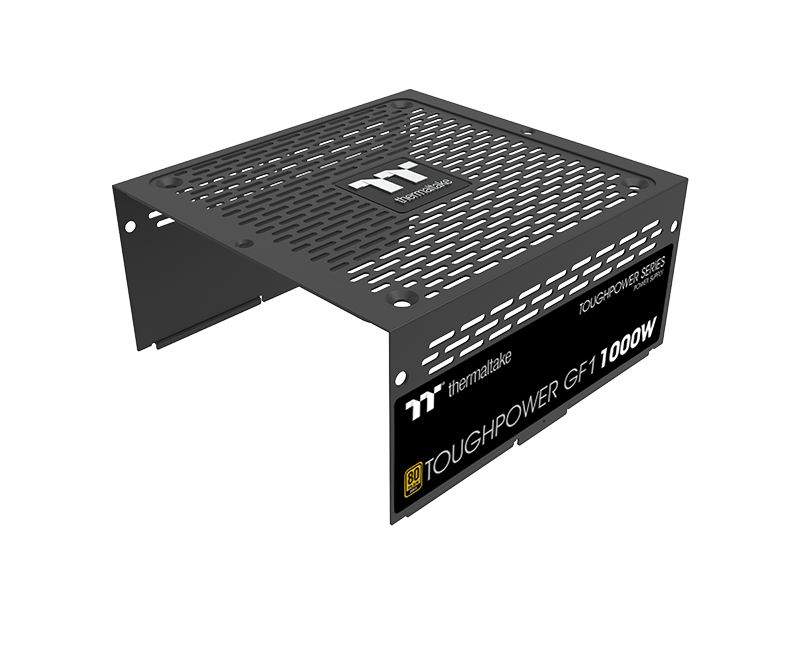

  • Durable Chassis

  • Anti-Vibration Mounting System

  • DC to DC Design

  • Modular Cable Management

  • Side Ventilation Design

  • Concentrated Compression Fan Blade

  • 100% High Quality Japanese 105°C / 221°F Capacitors

  • Zero Cable Platform

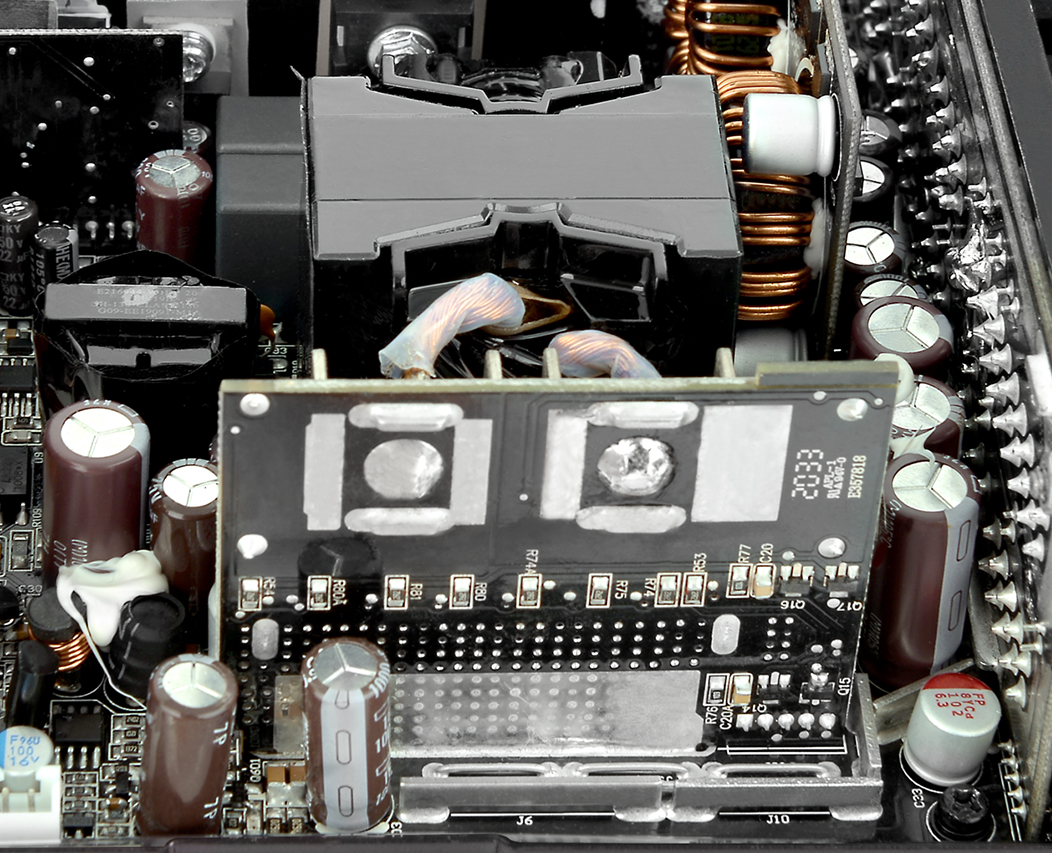

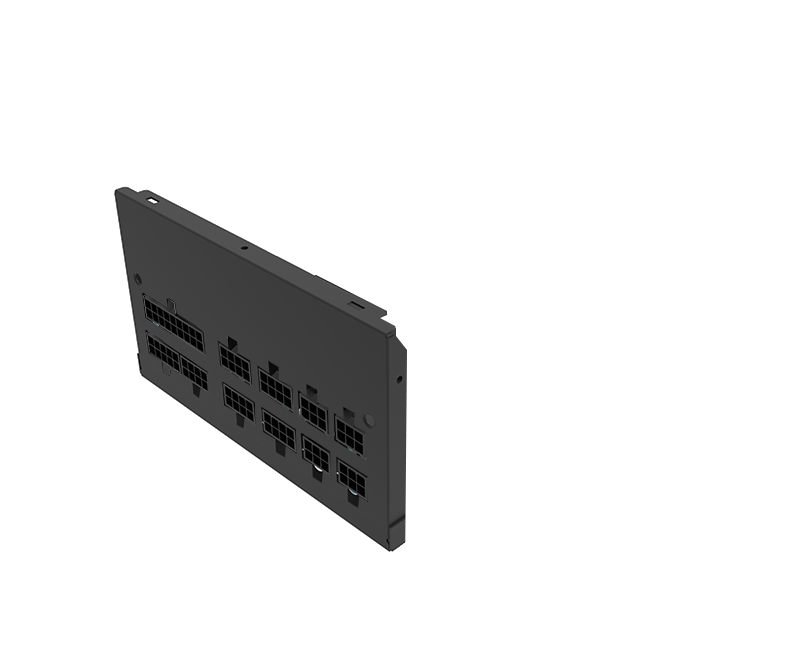

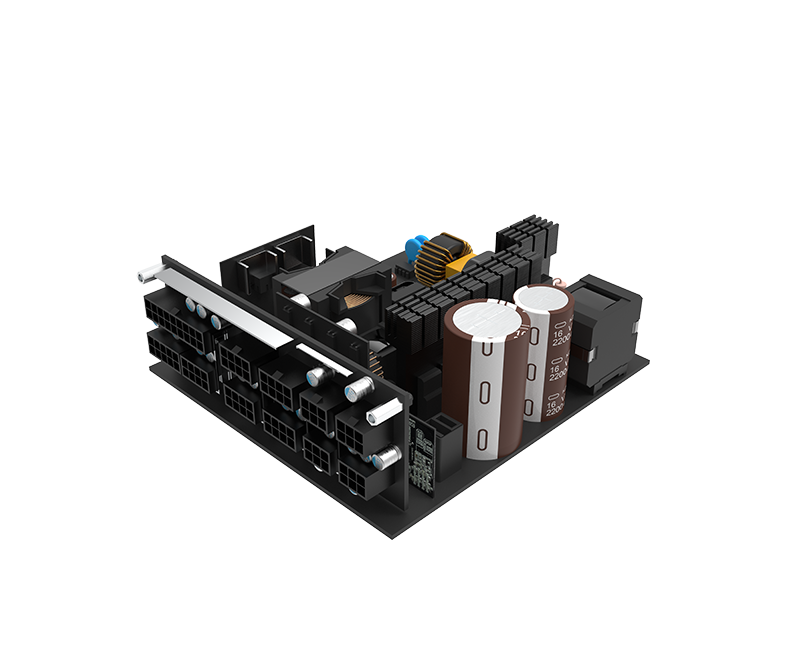

Zero Cable Platform

Farewell to messy cables! We have connected the back panel and the PCB with a copper plate for better heat dissipation and impressive output power quality.

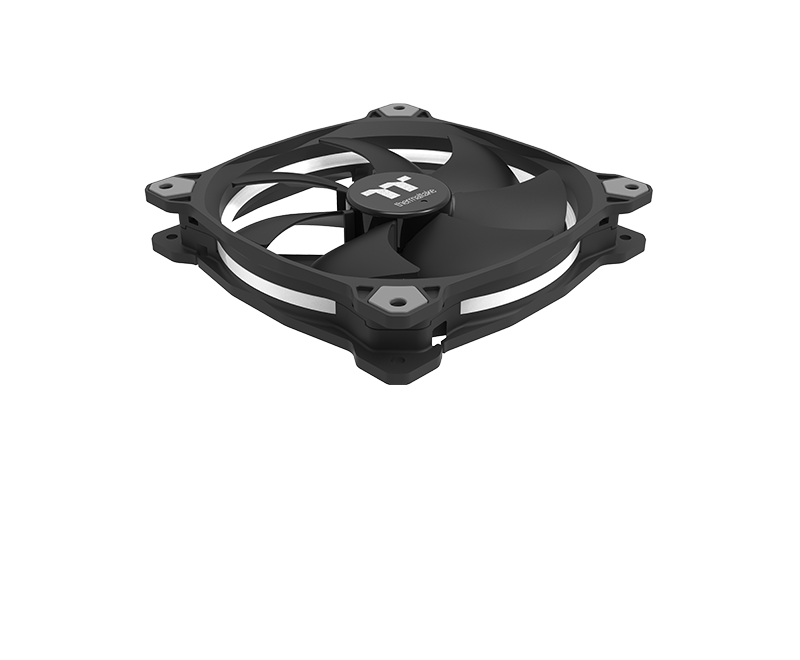

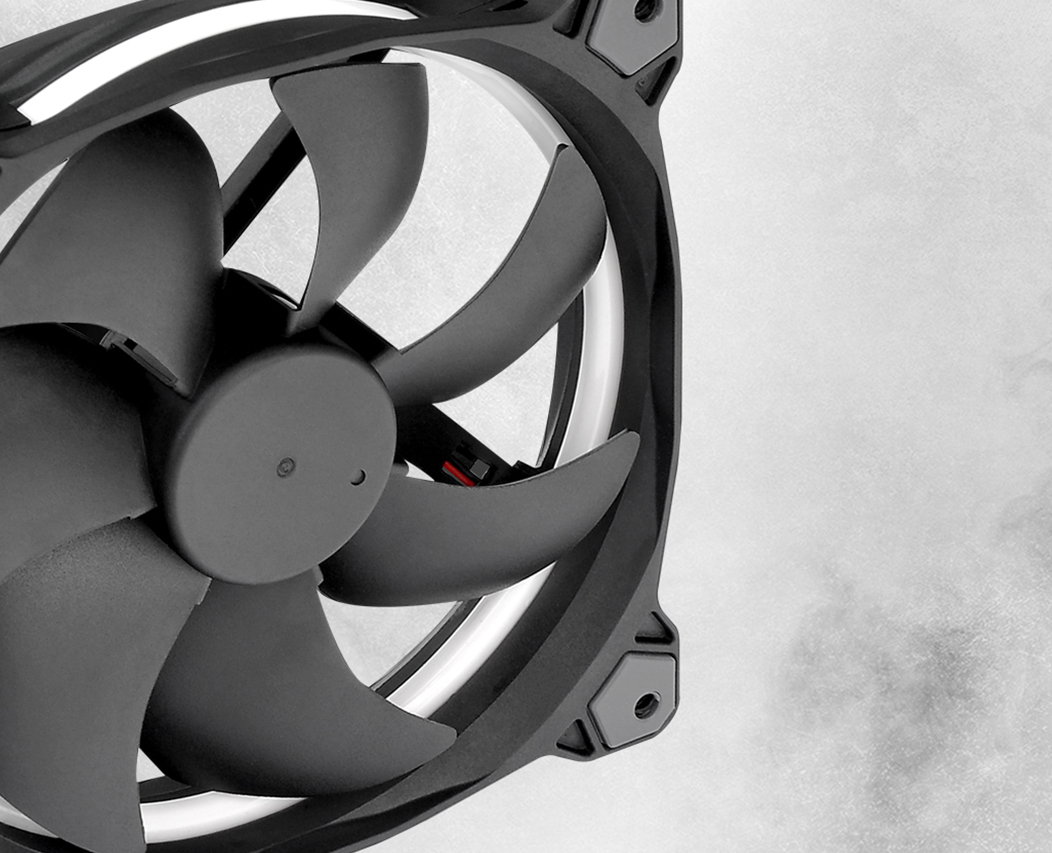

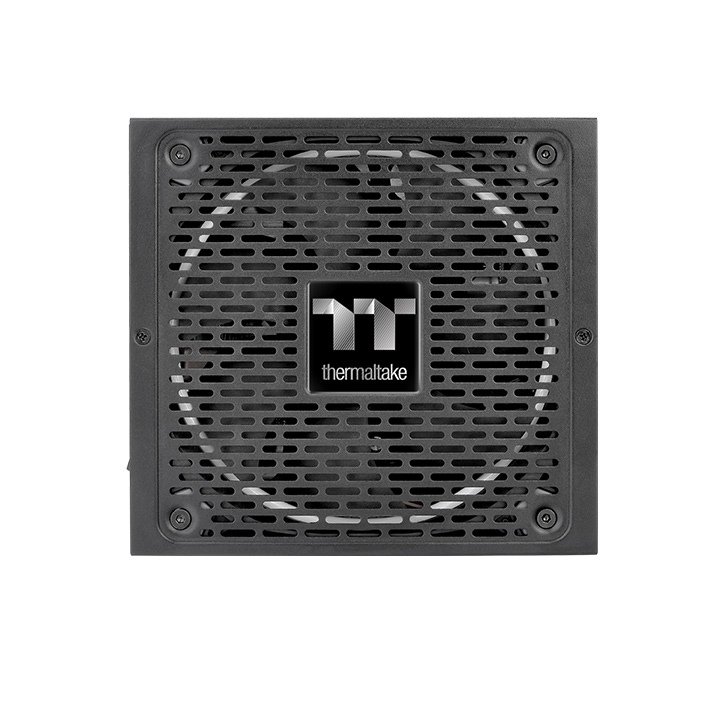

Ultra Quiet 140mm Hydraulic Bearing Fan

Featuring a 140mm hydraulic bearing fan with intelligent RPM controls to help guarantee superior cooling performance and near silent operation.

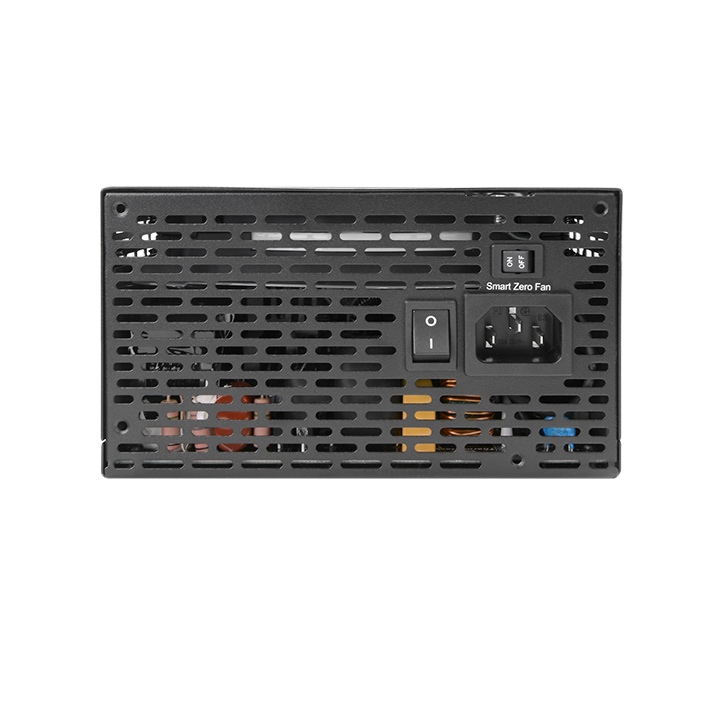

Smart Zero Fan

Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

<30mV Low Ripple Noise

All ripples are lower than 30mV on +12V, +5V or +3.3V from 0% to 100% load to ensure a stable operation and keep your performance-critical components to function reliably for longer.

+12V Rail
120 mV
30 mV
+5V Rail
50 mV
30 mV
+3.3V Rail
50 mV
30 mV


Intel Specification Toughpower GF1 Series

Extremely Strict Voltage Regulation <±2%

The voltage regulation, more strict than Intel’s standard ±5% for major rails and ±10% for -12V, is set to no more than ±2% for major rails to meet the highest performance.

+12V, +5V, +3.3V Voltage Regulation
±5 %
±2 %


Intel Specification Toughpower GF1 Series

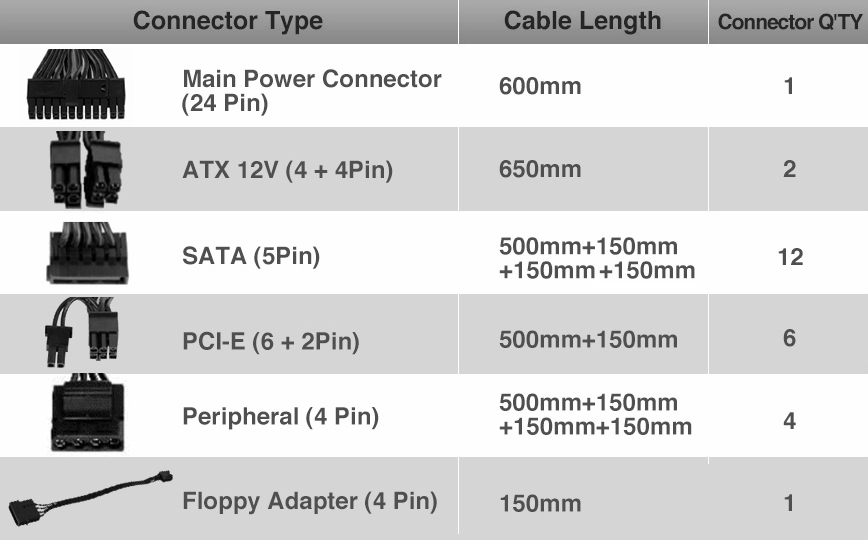

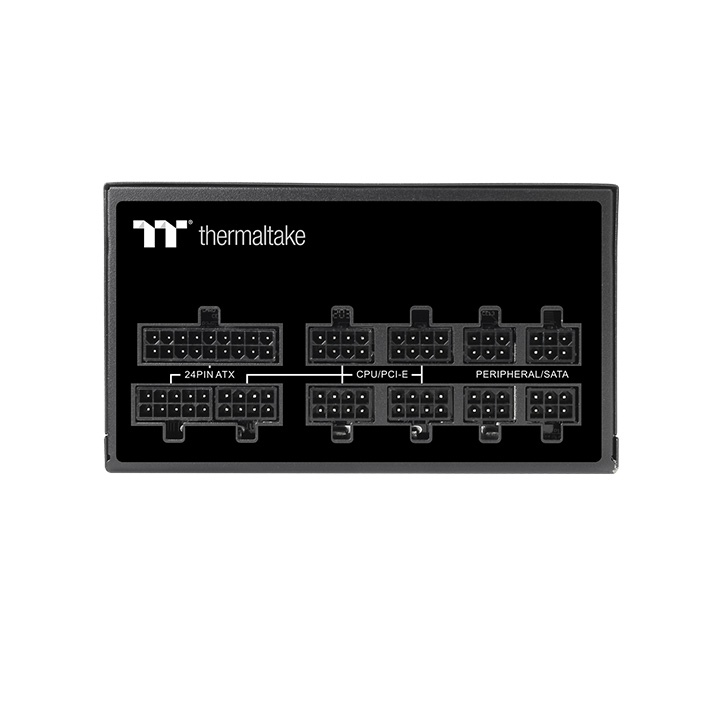

Fully Modular Low-Profile Flat Cable

Offers cable selection for users while powering the system at an advantageous voltage. Low-profile flat black cable makes cable management easier, reduces clutter and increases airflow inside the chassis.

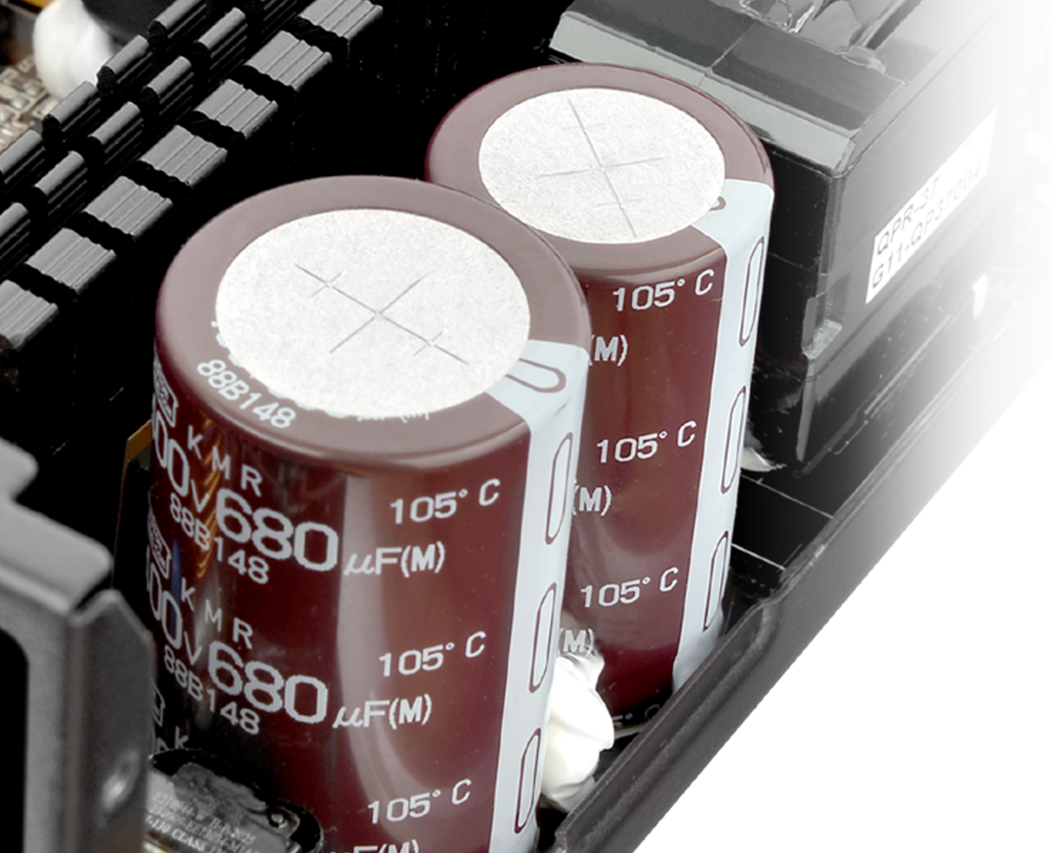

Premium Japanese 105°C/221°F Capacitors

Providing great durability as well as offering the highest stability, while remaining reliable.

High Amperage Single +12V Rail

Powerful single +12V rail ensures a stable and reliable supply to other PC components.

80 PLUS Gold Certified and Intel C6/C7 States Ready

Toughpower GF1 series saves energy through its high energy efficiency up to 90% and is certified to 80 PLUS® Gold. The series has been optimized to work with all generations of Intel’s processors to achieve maximum energy saving.

CYBENETICS - EFFICIENCY LEVEL CERTIFICATION - GOLD

Toughpower GF1 1000W is certified to CYBENETICS GOLD in 115V and 230V input in terms of efficiency level. The overall efficiency rating is defined as ≥87% & <89% of 115V input and ≥89% & <91% of 230V input. There are six ETA certifications, covering an efficiency range from 82%. Besides the overall efficiency of a PSU, ETA also takes into account its overall Power Factor readings along with the efficiency of the 5VSB rail and the power that the unit consumes in standby (also called phantom power).

CYBENETICS – NOISE LEVEL CERTIFICATION – A+

Toughpower GF1 1000W is certified to CYBENETICS A+ in 115V and 230V input in terms of the noise level. There are seven noise level certifications, covering from dead silent PSUs (<15db[A]) to quiet noisy ones(>40 db[A]). We use a solid methodology and states of the art equipment to measure the noise that a PSU outputs throughout its entire operation range, from almost zero noise output to full load

Daha Fazla Bilgi
P/N PS-TPD-1000FNFAGx-1
watts 1000W
Form Faktör ATX
Model TTP-1000AH3FCG
Mak. Çıkış Kapasitesi 1000W
En yüksek çıkış kapasitesi 1200W
Renk Black
Boyutlar (E/B/Y) 150mm(W) x 86mm(H) x 160mm(D)
Ağırlık 1.8kg
PFC (Power Factor Correction) Active PFC
Güç İyi Sinyali 100-500 msec
Bekleme Süresi > 16msec at 100% of full load
Giriş Akımı 15A max
Giriş Frekans Aralığı 50Hz /60Hz
Giriş Gerilimi 100V – 240V~
Çalışma Sıcaklığı 0°C to + 50°C
Çalışma Nem Oranı 20% to 90%,non-condensing
Saklama Sıcaklığı -20°C to + 70°C
Saklama Nem Oranı 5% to 95%, non-condensing
Soğutma Sistemi 14cm hydraulic bearing fan
Verimlilik Meet 80 PLUS®Gold at 115Vac input.
MTBF 100,000 hrs minimum
Güvenlik Onayı CE/cTUVus/TÜV/FCC/BSMI/EAC
PCI-E 6+2pin 6
Güvenlik OCP, OVP, OPP, SCP, OTP
