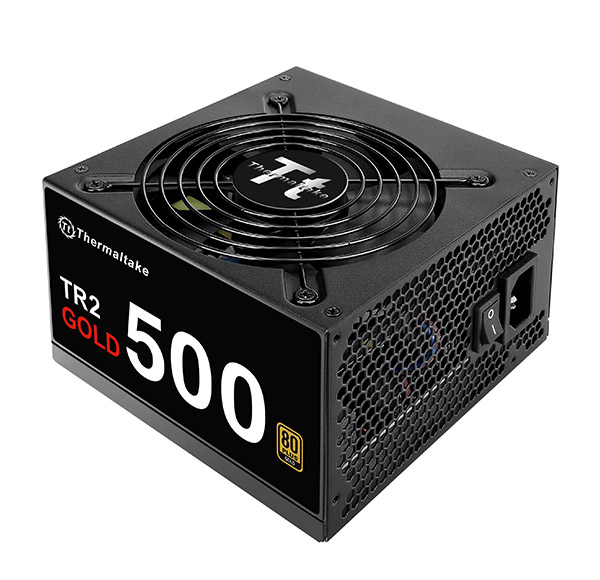

Thermaltake TR2 500W Gold
Incorporating various high-quality components, the new TR2 Gold – models are rated from 450W to 700W – saves energy through its high efficiency of up to 90% and accommodates any mainstream build with the most demanding requirements. An embedded intelligent cooling fan delivers excellent airflow at an exceptionally low noise level. Additionally, the Single +12V rail design enables non-stop usage with stable and reliable performance.

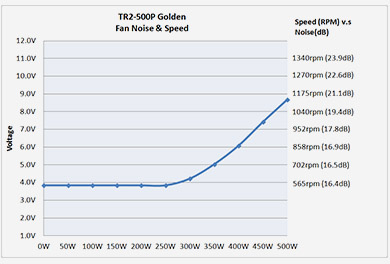

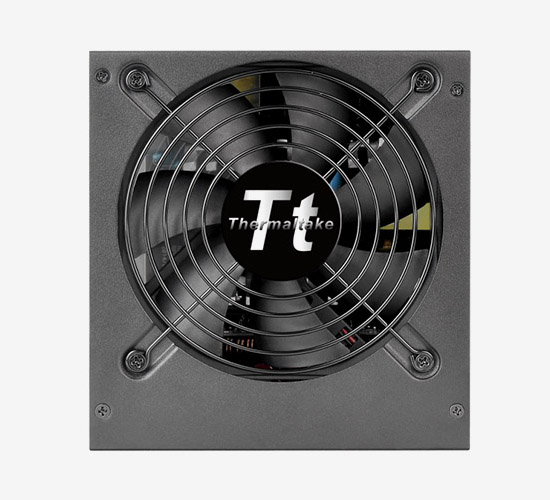

Ultra Quiet Fan
TR2 Gold Series adopts 12cm cooling fan with intelligent RPM control guarantees cool performance and silent operation.

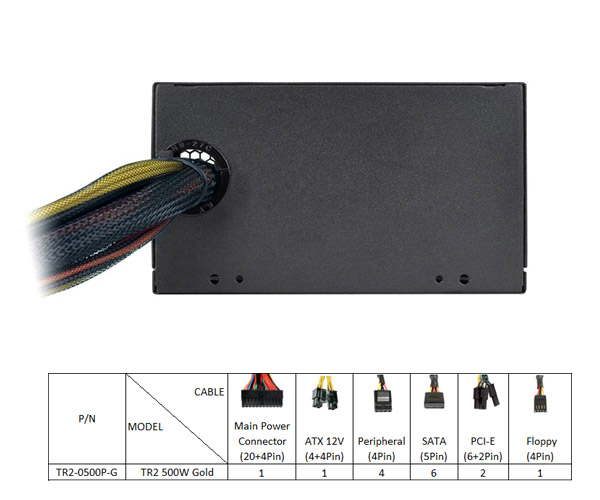

Multiple Connectors
The cables used for TR2 Gold are all sleeved. TR2 500W Gold connector’s specification as below:
80 PLUS Gold Certified and Kaby Lake-Ready
TR2 Gold Series saves energy through its high energy efficiency of up to 90% and is 80 PLUS® Gold certified. Additionally, TR2 S Gold Series has been optimized to work with Intel’s new, Seventh-generation Kaby Lake processors to achieve maximum energy savings.

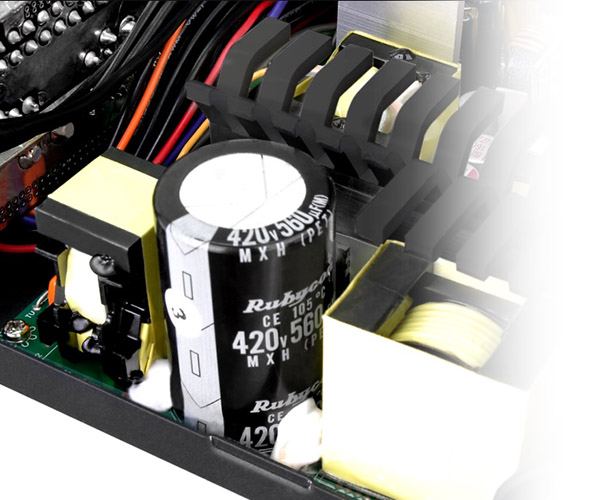

High Quality Capacitors
High quality capacitors enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage.
Massive and Dedicated Single +12V Output
TR2 Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
| AC INPUT |
Input Voltage: 100V-240V |
||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A |
20A |
41.7A |
0.3A |
3A |
| Max Output Power |
105W |
500W |
3.6W |
15W |
|
| Continuous Power |
500W |
||||
| P/N | PS-TR2-0500NPCG-G |
|---|---|
| watts | 500W |
| RGB Fan | Hayır |
| Form Faktör | ATX |
| Model | TR2-500AH2NSG |
| Tip | Intel ATX 12V 2.3 |
| Mak. Çıkış Kapasitesi | 500W |
| Renk | Black |
| Boyutlar (E/B/Y) | 86mm x 150mm x 140mm |
| PFC (Power Factor Correction) | Active PFC |
| Güç İyi Sinyali | 100-500 msec |
| Bekleme Süresi | 16msec (minimum) within full load under 230Vac/ 50Hz input. |
| Giriş Akımı | 8A max |
| Giriş Frekans Aralığı | 50 Hz - 60 Hz |
| Giriş Gerilimi | 100 Vac- 240 Vac |
| Çalışma Sıcaklığı | 0℃ to +40℃ |
| Çalışma Nem Oranı | 20% to 90%,non-condensing |
| Saklama Sıcaklığı | -40 ℃ to +70 ℃ |
| Saklama Nem Oranı | 20% to 95%, non-condensing |
| Soğutma Sistemi | 120mm Fan: 1500 R.P.M. ± 10% |
| Verimlilik | 87-92% efficiency @ 20-100% load |
| MTBF | 100,000 hrs minimum |
| Güvenlik Onayı | CE/UL/CUL/FCC/TUV/GOST. |
| PCI-E 6+2pin | PCI-E 6+2pin x 2 |
